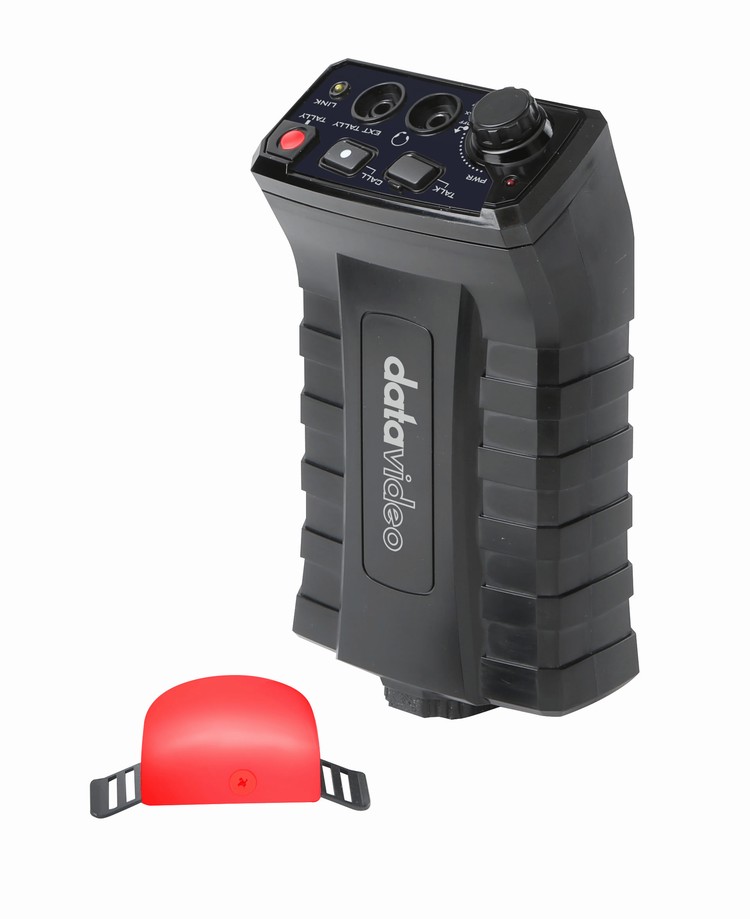

產品型號 |
ITC-300SL |
|
產品名稱 |
數字導播通話子機包 |
|
通話 |
Call Button x 1
Talk Button x 1 |
|
耳機麥克風接口 |
3.5mm Stereo Jack Socket x 1
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND) |
|
Tally輸出 |
3.5mm Jack Socket to connect to TD-3 Tally Indicator |
|
音量控制 |
VR with Multifunction Switch (Adjusts the volume of the headphones) |
|
Tally LED |
Bi-Color LED – RED indicates LIVE / GREEN Indicates CUED |
|
Power LED |
Red light |
|
Link LED |
Yellow light |
|
Call LED |
Green light – Outgoing call
Red light – Incoming call |
|
電源 |
Ethernet RJ45 x 1 (11V~36V) |
|
頻率響應 |
300 Hz~7 KHz, < +/-3dB |
|
總諧波失真(THD) |
< 0.1% @1KHz |
|
信號雜訊比(S/N) |
>70dB |
|
操作范圍 |
Up to 100m between Base Station and Slave |
|
操作溫度 |
0°C to 40°C |
|
儲存溫度 |
-20°C to 60°C |
|
濕度 |
10% to 80% (non-condensing) |
|
尺寸 |
81.2 x 142.6 x 49.6 mm |
|
重量 |
230 g |
